Kính hiển vi Huvitz HSZ 700

HSZ-700 Series Optimized zoom range and color reproduction offer top quality images. Interchangeable objective lenses and accessories can be implemented to provide

 Chú ý: Tất cả các dòng sản phẩm Kính hiển vi Huvitz Bảo hành thiết bị 5 năm chuẩn chính hãng

Features

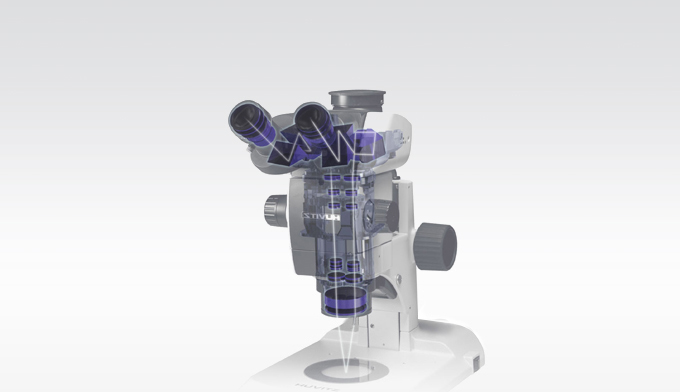

Galilean Optical System
The Galilean Optical System uses interchangeable objective lens that provide the best quality images.
http://microscope.huvitz.com/eng/img/product/img_hsz700_tab1.jpg

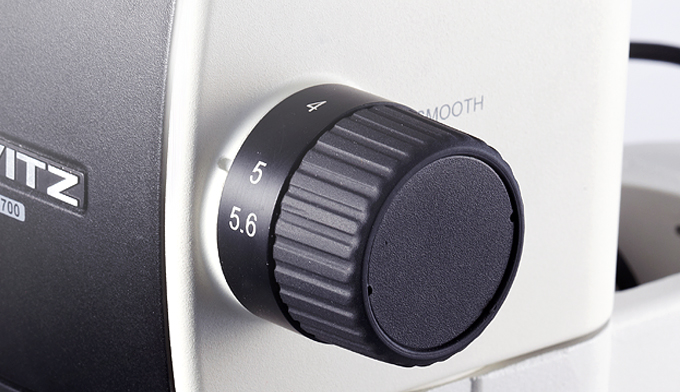

Effective 7:1 Zoom
The 8x to 56x zoom magnification range accommodates a vast majority of inspection tasks.
http://microscope.huvitz.com/eng/img/product/img_hsz700_tab2.jpg

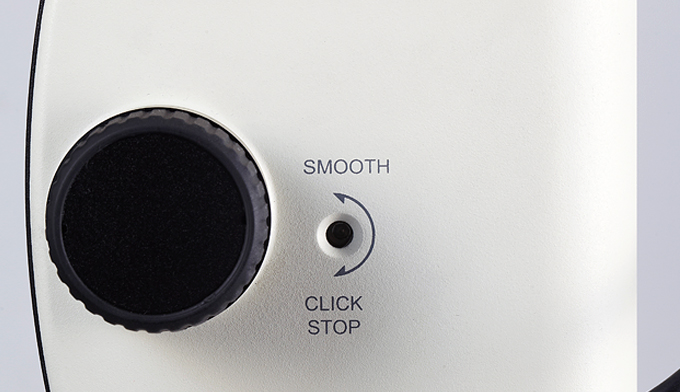

Click-Stop
To achieve consistent magnification, the Click Stop function has been implemented to improve work
efficiency. (HSZ-730TR)
http://microscope.huvitz.com/eng/img/product/img_hsz700_tab3.jpg

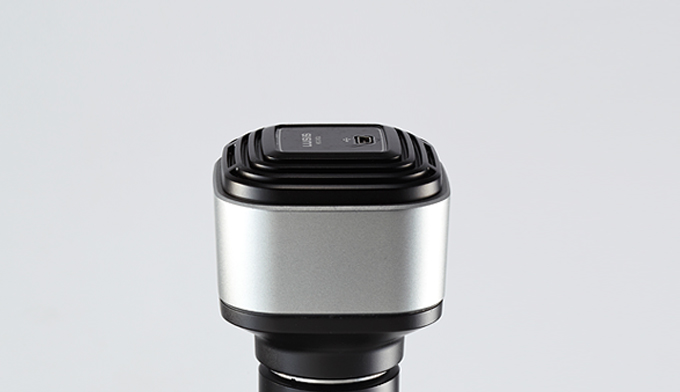

Variety of Video Ports
Huvitz exclusive video port lenses assure better quality video images for any digital camera systems.
(HSZ-730TR)
http://microscope.huvitz.com/eng/img/product/img_hsz700_tab4.jpg

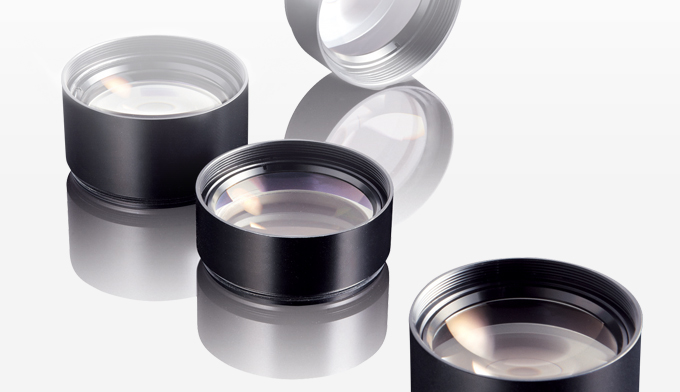

Superior optic system
Accurate color reproduction and high resolution power are the result of superior optic design minimizing
distortion and aberration offering a clear image on wide range and variety of samples.
http://microscope.huvitz.com/eng/img/product/img_hsz700_tab5.jpg

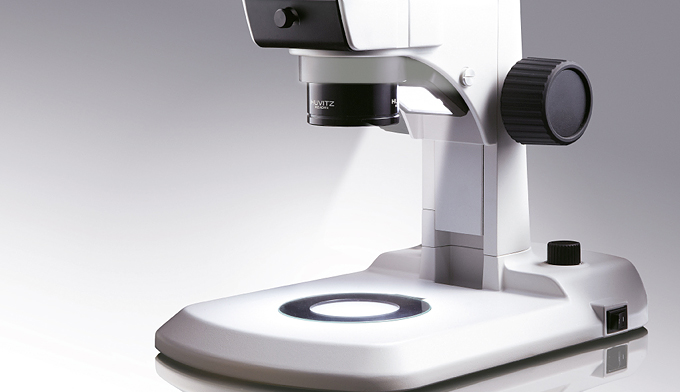

Built-in LED
Bright and durable LED illumination provides suitable transmission or reflection with low energy
consumption. (HSZ-ILST7)
http://microscope.huvitz.com/eng/img/product/img_hsz700_tab6.jpg

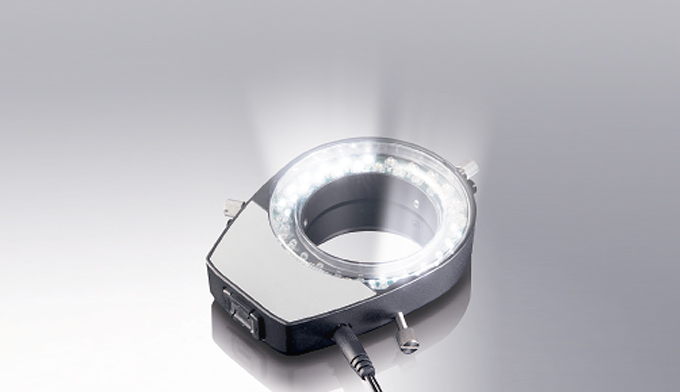

4 Split LED
Compact and adaptable, this LED illuminator can light each quadrant individually or in any combination to
better manage reflection and observation.
http://microscope.huvitz.com/eng/img/product/img_hsz700_tab7.jpg

Specifications

Item Specifications
Zoom microscope body
HSZ-ZB700
  • Zoom drive : Horizontal knob system
  • Click stop for each zoom magnification: On-Off switching possible
  • Zoom ratio values : 7:1 (0.8~5.6x)
  • Zoom magnification indication : 0.8, 1, 1.25, 1.6, 2, 2.5, 3.2, 4, 5, 5.6.
  • Objective lens mounting : Screw mounting into thread
Observation tube
HSZ-TR30
HSZ-BI30
  • Trinocular tube(HSZ-TR30), Binocular tube(HSZ-BI30)
  • View inclination angle : 30°
  • Light path selection(only HSZ-TR30) : 2 steps (Binocular 100%, Video 80%-Binocular 20%)
  • Interpupillary distance adjustable range : 55 to 75mm
  • Eyepiece clamping knob provided
Stand HSZ-ST7 HSZ-ILSTS7 HSZ-ILST7
HSZ-ST7 Standard large stand LED reflected / transmitted
illumination stand
LED reflected / transmitted
illumination large stand
HSZ-ILST7    Frame installation Mounting diameter : 76mm
HSZ-ILSTL7   Focusting adjustment Knob rotation tension adjustment
Focusing storoke : 120mm

  • HSZ-SPG
  • HSZ-SPBW
  • HSZ-SPG100
  • HSZ-SPG
  • HSZ-SPBW

  • Transmitted illumination: LED
  • Reflected illumination: LED
  • Average LED life span: 10,000 hrs.
  • Input rating: AC 100-240V, 50/60Hz, 10W
Objective lens
  • Model
  • HSZ-ACH1x
  • HSZ-PLAPO1x
  • HSZ-ACH1.5x
  • HSZ-ACH2x
  • Working distance
  • W/D : 90.5mm
  • W/D : 81mm
  • W/D : 45.5mm
  • W/D : 33.5mm
Eyepieces Eyepiece series
Weight
